产品简介

提供各种规格高效整流二极管芯(HER) 电性参数可根据客户需求设计生产

详细资料

详细说明

包装清单

售后服务

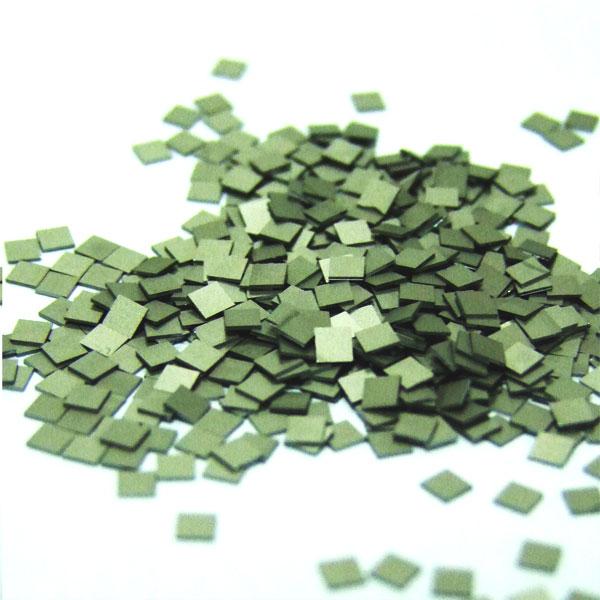

高效整流二极管芯(HER)


IO	产品规格	VR (V)	VF MAX(V)	TRR (NS)
1.0A	HER101~HER104	≥250	≤0.96	≤48
		≥350	≤0.98	≤48
	HER101S~HER104S	≥250	≤0.96	≤48
		≥350	≤0.98	≤48
	HT11~HT14	≥250	≤0.96	≤48
		≥350	≤0.98	≤48
	1H1~1H4	≥250	≤0.96	≤48
		≥350	≤0.98	≤48
	1U1~1U4	≥250	≤0.96	≤48
		≥350	≤0.98	≤48
	UF4001~UF4004	≥250	≤0.96	≤48
		≥350	≤0.98	≤48
	HER105	≥450	≤1.0	≤48
		≥500	≤1.24	≤50
	HER105S	≥450	≤1.0	≤48
		≥500	≤1.24	≤50
	HT15	≥450	≤1.0	≤48
		≥500	≤1.24	≤50
	1H5	≥450	≤1.0	≤48
		≥500	≤1.24	≤50
	1U5	≥450	≤1.0	≤48
		≥500	≤1.24	≤50
	UF4005	≥450	≤1.0	≤48
		≥500	≤1.24	≤50
	HER106	≥700	≤1.65	≤73
	HER106S	≥700	≤1.65	≤73
	HT16	≥700	≤1.65	≤73
	1H6	≥700	≤1.65	≤73
	1U6	≥700	≤1.65	≤73
	UF4006	≥700	≤1.65	≤73
	HER107~HER108	≥1150	≤1.68	≤73
		≥1150	≤1.26	≤90
	HER107S~HER108S	≥1150	≤1.68	≤73
		≥1150	≤1.26	≤90
	HT17~HT18	≥1150	≤1.68	≤73
		≥1150	≤1.26	≤90
	1H7~1H8	≥1150	≤1.68	≤73
		≥1150	≤1.26	≤90
	1U7~1U8	≥1150	≤1.68	≤73
		≥1150	≤1.26	≤90
	UF4007	≥1150	≤1.68	≤73
		≥1150	≤1.26	≤90
1.5A	HER151~HER154	≥250	≤0.96	≤48
	HER155	≥450	≤1.24	≤48
	HER156	≥700	≤1.65	≤73
	HER157~HER158	≥1150	≤1.68	≤73
2A	HER201~HER204	≥250	≤0.96	≤48
	HER205	≥450	≤1.24	≤48
	HER206	≥700	≤1.65	≤73
	HER207~HER208	≥1150	≤1.68	≤73
3A	HER301~HER304	≥250	≤0.96	≤48
	UF5400~UF5403	≥250	≤0.96	≤48
	HER305	≥450	≤1.24	≤48
	UF5404	≥450	≤1.24	≤48
	HER306	≥680	≤1.65	≤73
	UF5406	≥680	≤1.65	≤73
	HER307~HER308	≥1150	≤1.68	≤73
	UF5407~UF5408	≥1150	≤1.68	≤73
5A	HER501~HER504	≥250	≤0.96	≤48
	HER505	≥450	≤1.24	≤48
	HER506	≥680	≤1.65	≤73
	HER507~HER508	≥1150	≤1.68	≤73
6A	HER601~HER604	≥250	≤0.96	≤48
	HER605	≥450	≤1.24	≤48
	HER606	≥680	≤1.65	≤73
	HER607~HER608	≥1150	≤1.68	≤73
